On a double sink, the disposal mounts under one bowl. The second bowl drains through a tailpiece into a continuous waste arm, and both flow to one trap. The dishwasher drain connects to a port on the disposal after the knockout plug is removed. Power must be off at the breaker for the entire job.
This guide covers how the plumbing fits together, what changes with a double bowl, the dishwasher knockout, and where plumbing ends and electrical work begins. If wiring is needed, a licensed electrician should do it.
How a double bowl sink drains with a disposal

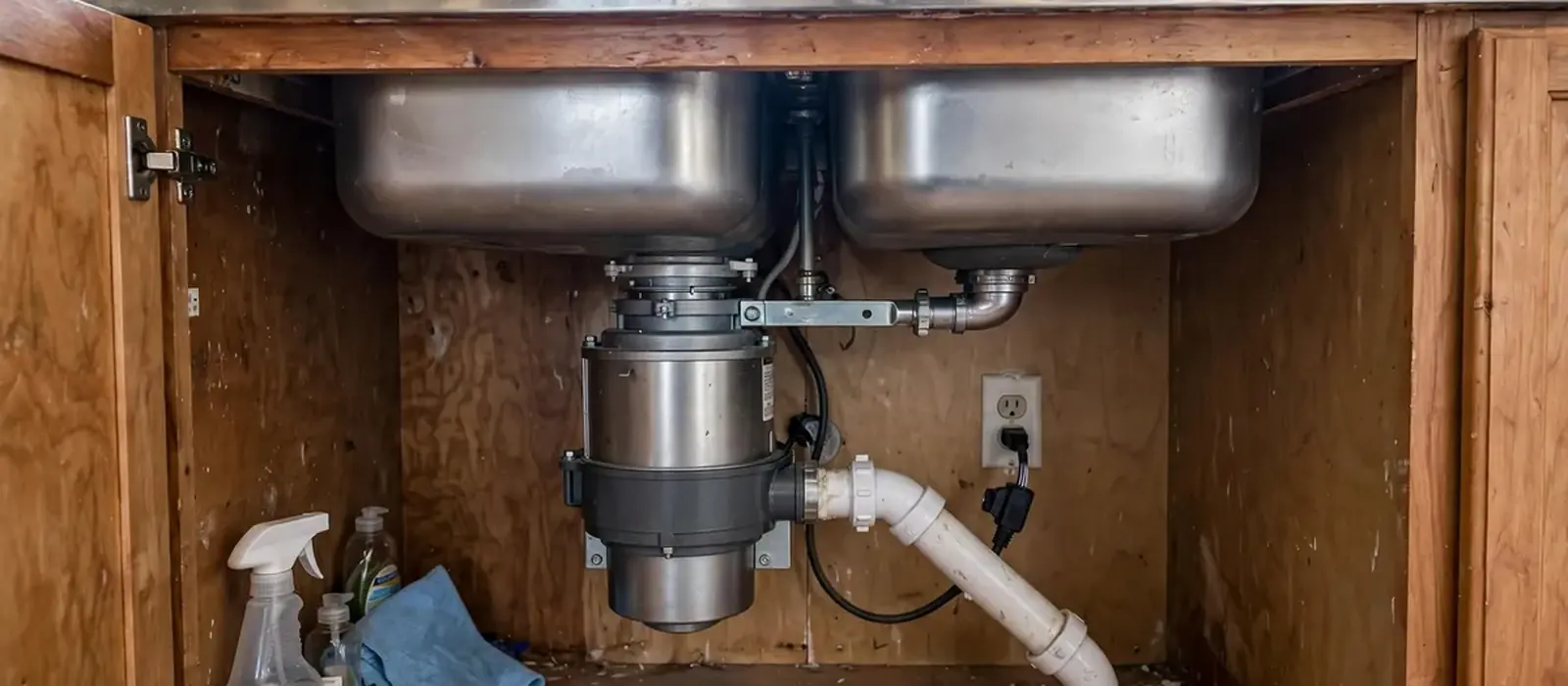

A double sink has two drain openings. The disposal takes one. The other bowl needs a tailpiece that runs to the disposal's side outlet or to a waste arm that joins the disposal discharge before the trap.
Everything then drains through a single trap and into the wall. The plan matters because a poor arrangement leaves standing water in the second bowl or causes gurgling.
Most kitchens can be set up with a disposal waste elbow, a continuous waste arm and a P-trap. Which parts fit depends on the sink depth, cabinet space and the location of the wall drain.
Parts for a double sink with a disposal
| Part | Job | What to check |
|---|---|---|
| Disposal unit | Grinds scraps, mounts under bowl one | Horsepower, mounting style, cord or hardwire |
| Sink flange and mounting ring | Seals the sink opening | Putty or gasket, even tightening |
| Second bowl tailpiece | Drains bowl two | Length and angle to the waste arm |
| Continuous waste arm (trap arm) | Joins both bowls to the trap | Slopes slightly down toward the wall |
| P-trap | Blocks sewer gas | Height matches the wall stub |
| Dishwasher drain hose | Carries dishwasher water in | High loop or air gap |
Plumbing steps for the install
Turn off power and water
Switch off the breaker for the sink area and, if replacing, unplug or disconnect the old unit. Close the shutoff valves under the sink.
Remove the old drain parts
Take off the trap and tailpieces, and remove the old sink flange from bowl one.
Seat the new sink flange
Set the flange with plumber's putty or its gasket, attach the mounting ring and tighten evenly.
Remove the dishwasher knockout if needed
If a dishwasher connects, knock out the plug inside the dishwasher inlet with a hammer and screwdriver. Remove the loose plug from the unit.
Mount the disposal and connect the waste arm
Lock the disposal to the mount, align the outlet, attach the waste elbow and the second bowl tailpiece to the continuous waste arm.
Connect the dishwasher hose and the trap
Clamp the dishwasher drain hose to the inlet with a high loop. Join the arm to the P-trap.
Test for leaks
Restore water, fill both bowls, release them and check every joint with a dry towel before restoring power.
Dishwasher knockout: do this once
Most new disposals have a plastic plug in the dishwasher inlet. If a dishwasher is connected and the plug stays in, the dishwasher cannot drain. Knock it out, then fish the loose plug from the disposal chamber so it does not jam the unit.
Electrical safety and who should wire it
A disposal needs power from a switch or an outlet under the sink. Switch off the circuit at the breaker and confirm it is dead before touching any wire. Water and electricity are a dangerous mix.
If there is no outlet or switch, or the wiring looks damaged, stop. New wiring is electrical work, not plumbing, and a licensed electrician should handle it. Never run a disposal with a missing cover or an exposed wire. If you suspect a shock hazard, leave the area and call 911.
Cord or hardwire
Some disposals come with a cord and plug and others are hardwired. A cord needs a grounded outlet in reach. Hardwiring should be done by a licensed electrician. Ask the Rocky Hill building department what applies.
Common disposal install mistakes
Mistakes that cause leaks and clogs
- Overtightening the mounting ring and cracking a stainless sink.
- Forgetting to remove the dishwasher knockout.
- Leaving the second bowl without enough slope to drain.
- Setting the trap too high or too low for the wall stub.
- Letting the dishwasher hose run straight down with no high loop.
- Running the unit before checking leaks and power.
When to call a plumber
Call if the drain parts do not line up, the wall drain is the wrong height, you need a new outlet, or the sink is stone or composite and hard to work around. Also call if you smell gas, see water near the electrical connection, or the unit has jammed or leaks.
Our garbage disposal repair service handles jams, leaks and replacements. For a new disposal where none existed, see plumbing installation. Our line takes urgent calls 24/7.
What affects the cost of a disposal install
You get a clear price before work starts. These factors decide it.
What moves the price
- Unit size and quality.
- Whether a disposal was already there.
- Drain changes: moving the trap or the waste arm adds parts and time.
- Electrical needs: a new outlet or switch is a separate job.
- Time of the call: nights, weekends and holidays are usually priced differently.
Rocky Hill sewers and disposals
MDC provides both water and sewer service in Rocky Hill, and sewer costs are part of the town tax levy, so there is no separate sewer bill. Most homes date from the 1960s to the 1980s.
For you, that means kitchen drains and wall stubs in many homes are older, and grease still has to go in the trash, not down the disposal. Ask the Rocky Hill building department about permit rules for your job, and call MDC Utility Services at (860) 278-7850 if you suspect a sewer problem outside the house.
Source type: town webpage, utility contact page, town planning document
Questions homeowners ask
Can I install a garbage disposal on a double sink?
Yes. The disposal mounts under one bowl, and the second bowl drains through a tailpiece into a continuous waste arm that joins the disposal outlet before the P-trap. Cabinet space and the wall drain height decide the layout.
What is the dishwasher knockout?
It is a plastic plug in the disposal's dishwasher inlet. If a dishwasher drains into the unit, the plug must be knocked out. Remove the loose plug from inside the chamber afterward.
Do I need an electrician for a garbage disposal?
If there is a working outlet or switch under the sink, a cord-connected unit may plug in. New wiring, a new circuit or hardwiring should be done by a licensed electrician. Always turn off the breaker first.
Why does the second bowl drain slowly after install?
The waste arm may lack slope, the tailpiece may be too long or the trap may be too high. A trap that is set too low or a partial clog can do the same. A plumber can reset the arrangement.
Can a disposal go on any sink?
Most standard kitchen sinks with a three-bolt or similar drain opening work. Stone, composite and thin stainless sinks need extra care. Check the sink maker's instructions.
